Getting Started

Setup

First, let’s make sure that your development environment is ready.

• If you don’t have Node.js installed, install it from here (opens in a new tab). You’ll need Node.js version 18 or later.
• You’ll be using your own text editor and terminal app.

Create a new project

To scaffold a new project, run any of the following three commands and answer the command prompt questions:

npm

npm create caspar-graphics@latest

yarn

yarn create caspar-graphics

pnpm

pnpm create caspar-graphics@latest

After your project has been created, you'll have a folder containing:

.
└── templates
    └── example
        └── index.html
        └── manifest.json
├── node_modules
├── package.json
├── .gitignore

The templates folder contains all your graphic templates. Each subfolder that contains an index.html file and a manifest.json will be picked up as a graphic, with the html file as its entry point.

An example graphic has been created for you that you can either delete or rename to your liking.

Run the development server

Once the installation is done, follow the on-screen instructions by moving into your project folder and running:

npm install
npm run dev

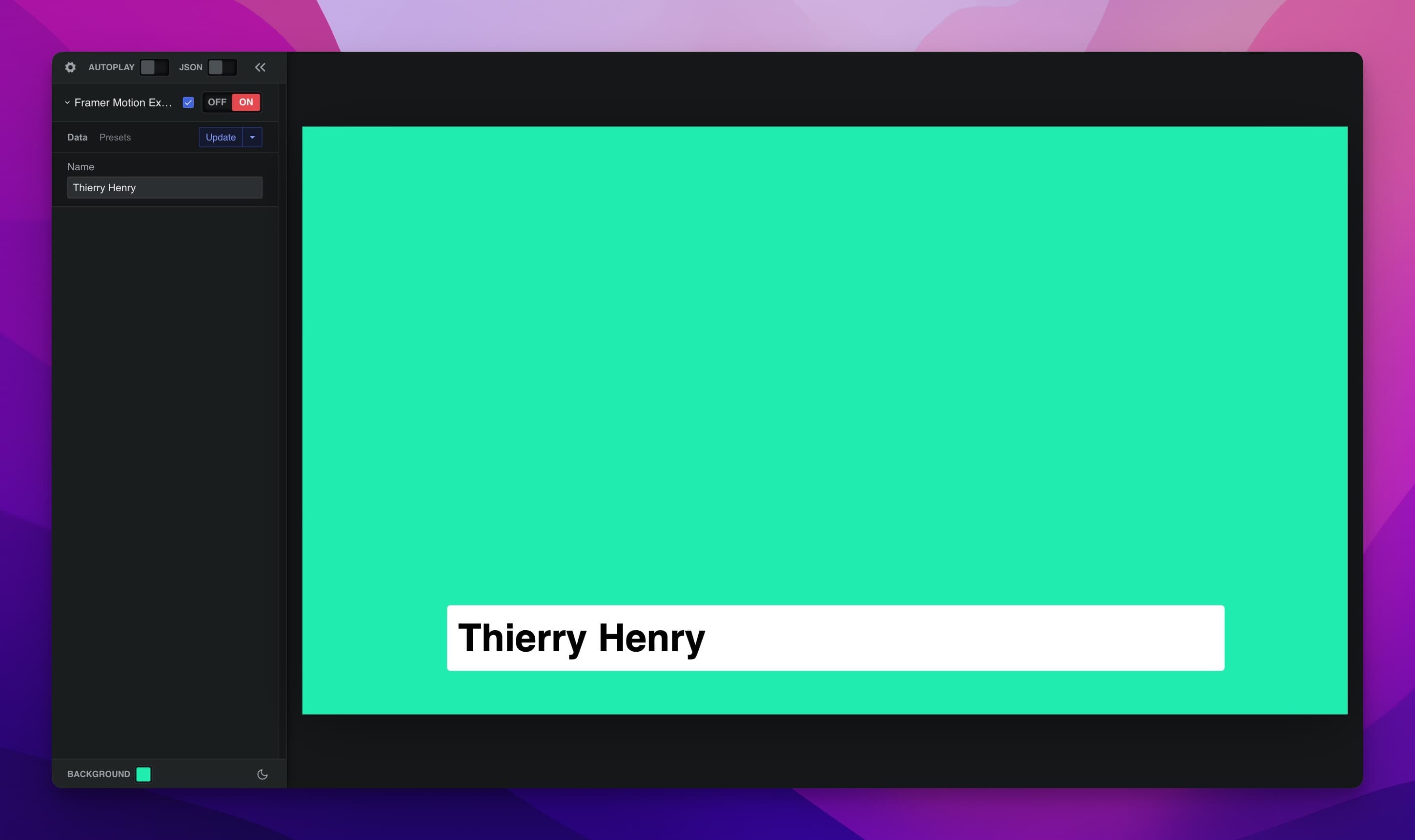

This will install the dependencies and start the development server and its accompanying UI. Open http://localhost:8080 (opens in a new tab) to view it inside the browser:
