Sending Data

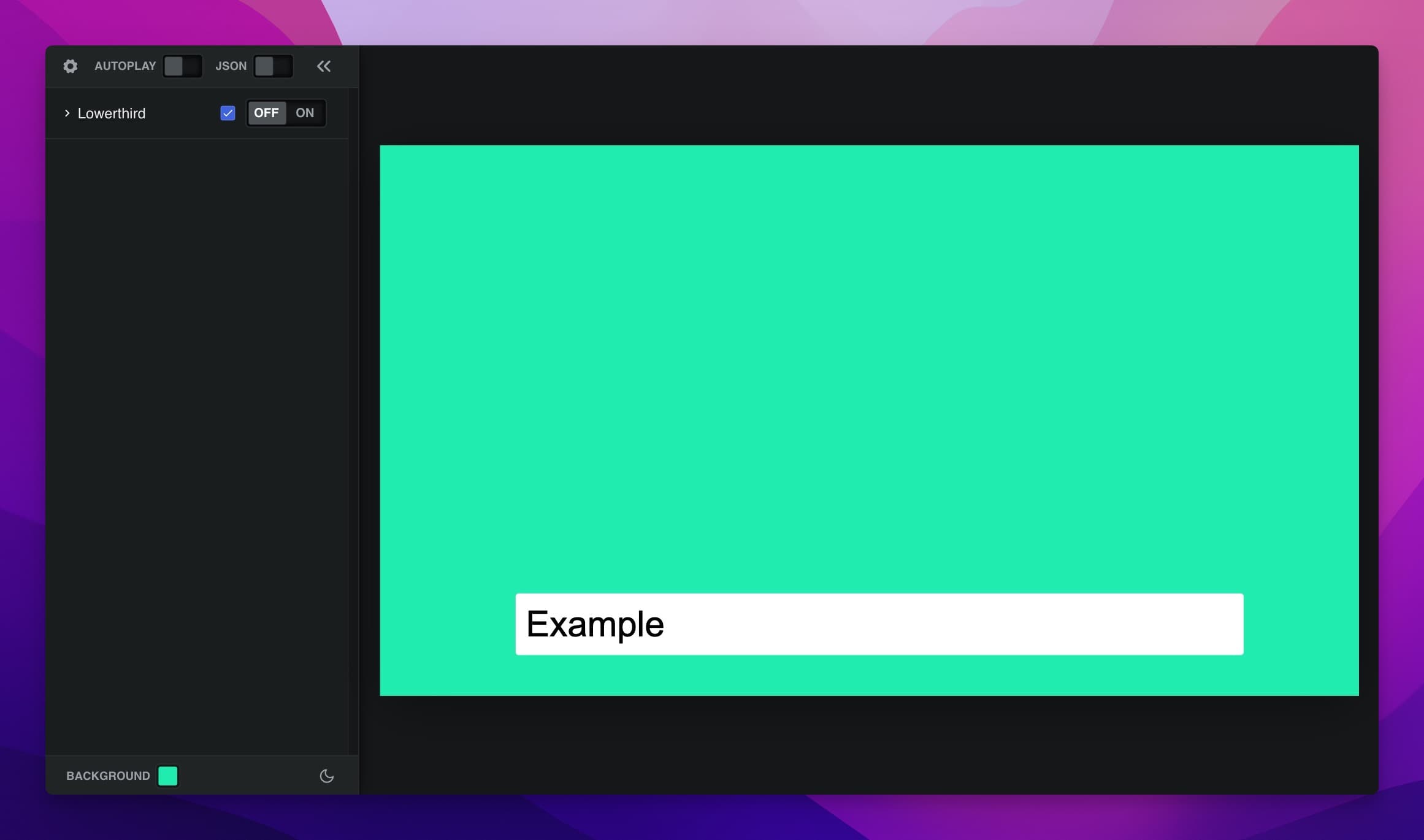

Our Lowerthird is visible on the screen, but it's just showing the static text "Example":

Add a Text Field

Let's make it possible to send any text to it. Open up manifest.json once again, but this time add a property called text to its schema:

{
  "name": "Lowerthird",
  "schema": {
    "text": {
      "type": "string",
      "label": "Text"
    }
  },
  "previewData": {}
}

You can think of the schema as the graphic's blueprint. Here we're saying that our Lowerthird accepts one field called text of type string.

If you save the file and reload the page, you should see that we now have a new input called "Text" in the sidebar:

We can now use this field to send text to the graphic. If we type in "Hello World" and press the "Update" button, a JSON object will be sent to the graphic (you can verify this by opening up the console in Dev Tools):

{
  "text": "Hello World"
}

Make the Graphic Respond to Updates

We've just sent an update to our Lowerthird, but it's still just displaying the text "Example". Now we need to tell it to use the text field from our update. Open up index.jsx and grab the data object from the useCaspar() hook. This object will contain everything we send to it. So we can now replace the static text "Example" with the dynamic data.text that we just sent to it:

import { render, useCaspar } from '@nxtedition/graphics-kit'

function Example() {
  const { data } = useCaspar()

  return (
    <div
      style={{
        position: 'absolute',
        bottom: 80,
        left: 266,
        width: 1388,
        padding: 20,
        backgroundColor: 'white',
        borderRadius: 6,
        fontSize: 70,
        fontFamily: 'Arial',
        overflow: 'hidden'
      }}
    >
      {data.text}
    </div>
  )
}

render(Example)

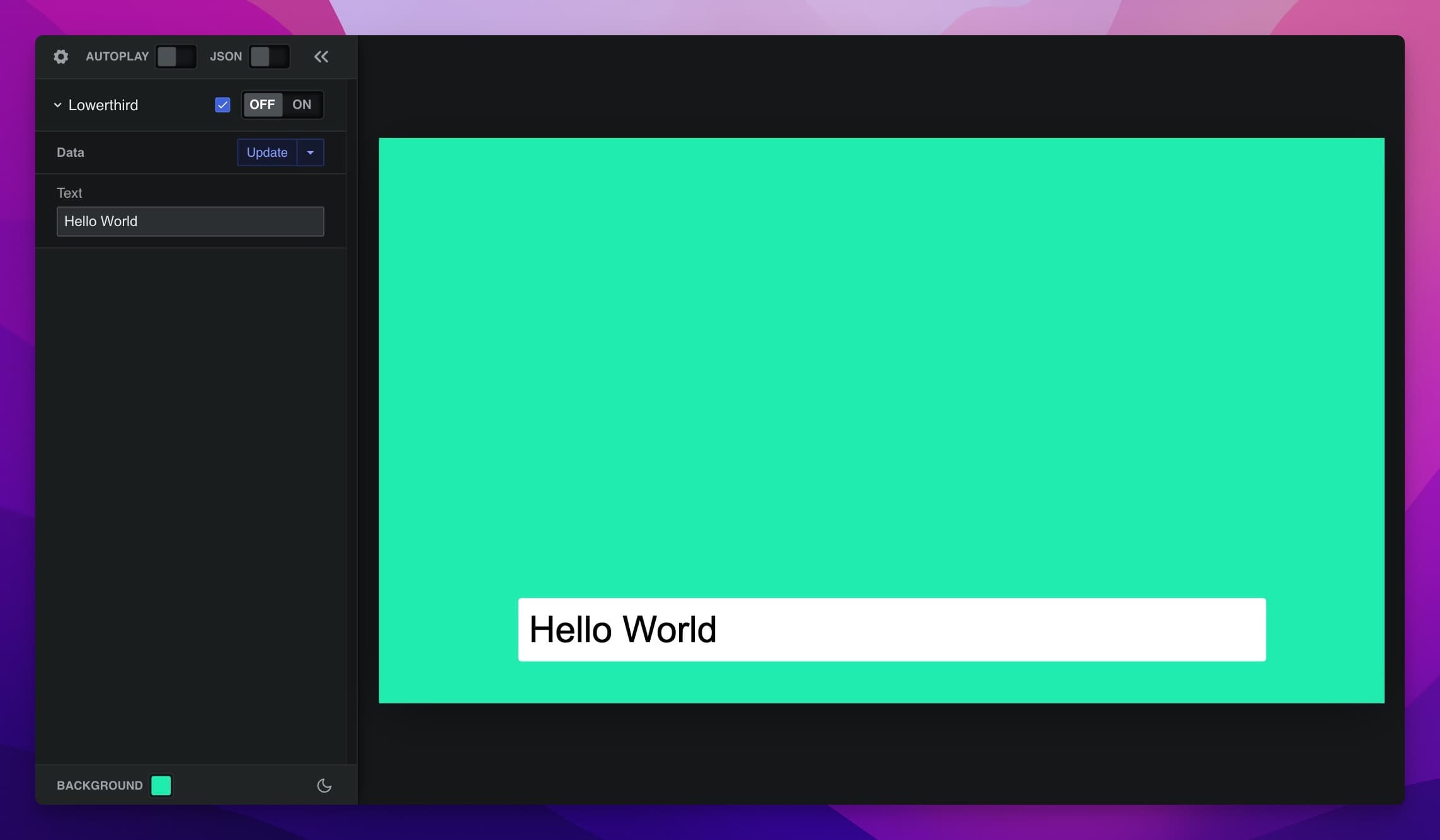

And just like that you should now see it display "Hello World" 🎉

If you try sending more updates, you'll see that it updates immediately.
