Introducing State

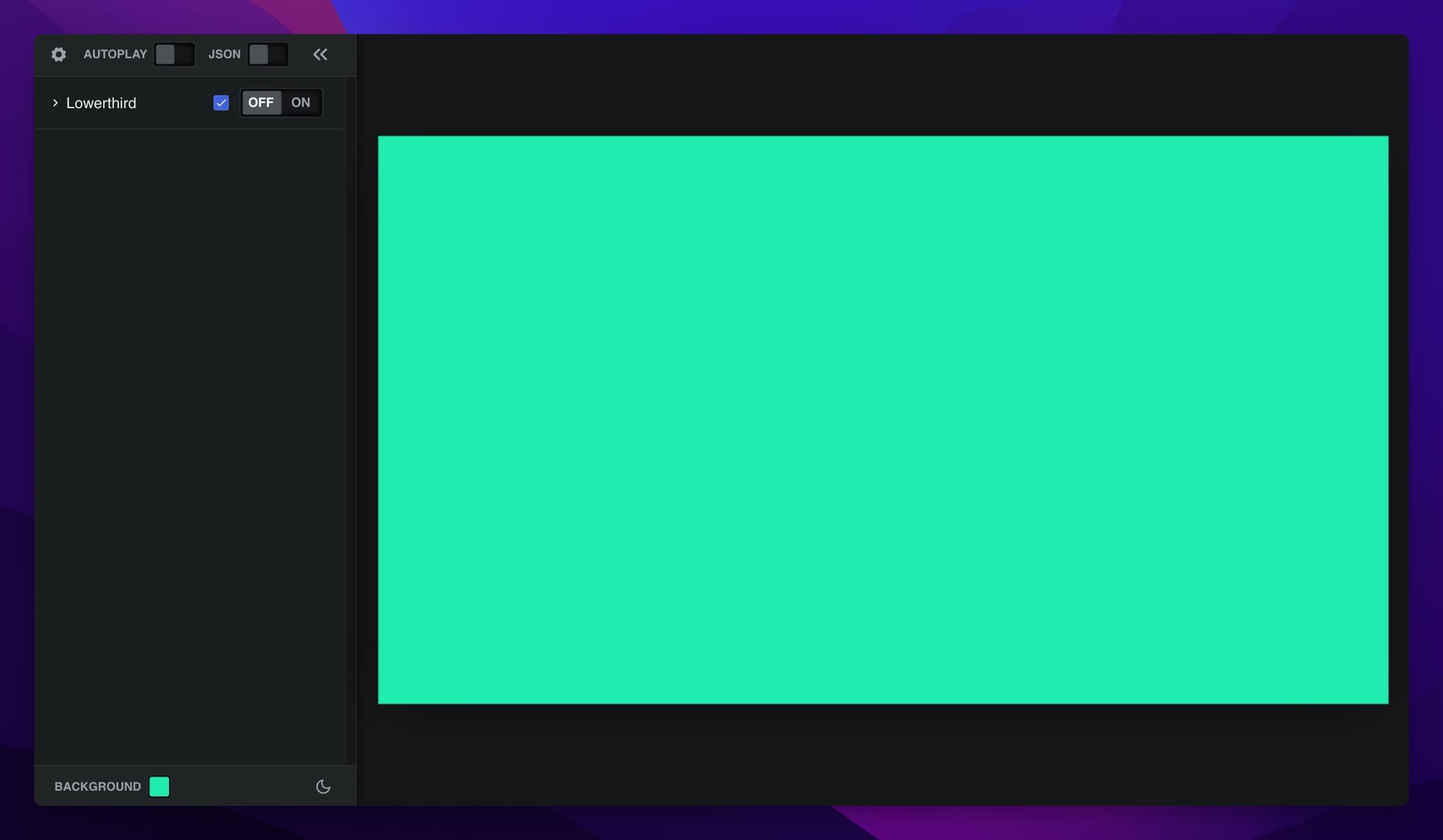

Currently our graphic is always visible, even though it says OFF in the sidebar (which would be the same as it showing before receiving the play command from Caspar). Let's change that!

Open up index.jsx and grab the isPlaying state from the useCaspar() hook so that we can hide the graphic when it's not playing:

import { render, useCaspar } from '@nxtedition/graphics-kit'

function Example() {
  const { data, isPlaying } = useCaspar()

  return (
    <div
      style={{
        opacity: isPlaying ? 1 : 0,
        transition: 'opacity 1s ease',
        position: 'absolute',
        bottom: 80,
        left: 266,
        width: 1388,
        padding: 20,
        backgroundColor: 'white',
        borderRadius: 6,
        fontSize: 70,
        fontFamily: 'Arial',
        overflow: 'hidden'
      }}
    >
      {data.text}
    </div>
  )
}

render(Example)

Now if we make the graphic appear again, by toggling the switch to ON, we'll see it fade in over 1 second.

Safe to Remove

Take the graphic OFF again and you'll see that it fades off as expected. But if you try toggling it back ON you'll notice that it doesn't work. So what's going on here?

Typically when taking a graphic off, you want to do so with an animation. And only once that animation has finished, we want the server to actually remove the graphic. But the server doesn't know how long that will take, so instead it will wait for you to tell it that it's safe to remove.

You can do this in two different ways:

1. Call the safeToRemove() function when your graphic is ready to be removed.
2. Use the removeDelay option to specify how long it should wait before taking the graphic off.

Since we set our opacity transition to 1s, we'll just set the removeDelay to 1, which will remove it once second after it recieves stop:

import { render, useCaspar } from '@nxtedition/graphics-kit'

function Example() {
  const { data, isPlaying } = useCaspar({ removeDelay: 1 })

  return (
    <div
      style={{
        opacity: isPlaying ? 1 : 0,
        transition: 'opacity 1s ease',
        position: 'absolute',
        bottom: 80,
        left: 266,
        width: 1388,
        padding: 20,
        backgroundColor: 'white',
        borderRadius: 6,
        fontSize: 70,
        fontFamily: 'Arial',
        overflow: 'hidden'
      }}
    >
      {data.text}
    </div>
  )
}

render(Example)

Now you can toggle the graphic ON/OFF as many times as you want.
